Dial Indexing Thread Inspection Stations

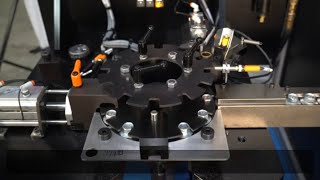

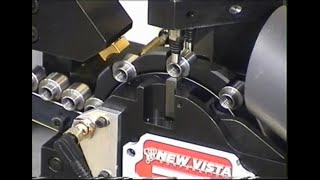

This Rotary Dial Station GO verifies internal threads in Round Nuts. The index wheel (dial plate) is at the center of the photo and the Thread-Verification Unit feeds down from the top. The machine is designed to run multiple part numbers and for quick changeover.

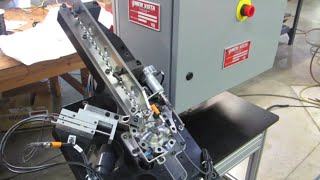

This vertically oriented dial indexing station tests Gear Blanks, for power seat mechanisms. The New Vista IND verifies the multi-start thread and measures the two trunnion-end diameters. Reject parts are sorted out.

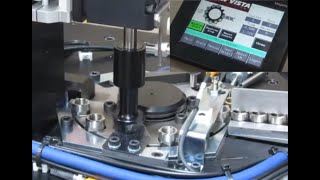

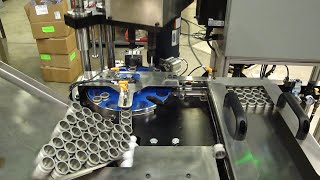

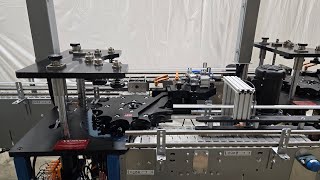

This fully automated Dial Indexing Station is fed by a conveyor. The machine takes in two Oil filters at a time then performs a GO check, a NO GO for Pitch Diameter, and a NO GO for Minor Diameter. The parts are released back to the conveyor belt sorting the failed parts to the far edge of the belt.

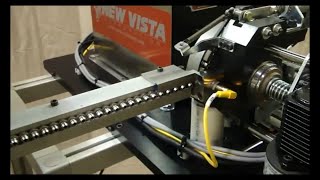

This automated Dial Indexing Station GO verifies an internal M3 thread in circuit board spacers. Incoming parts are supplied by in-process feed tube, verified, then the good parts tube discharges parts in the correct orientation for next process step. Failed parts are collected in a reject bin.

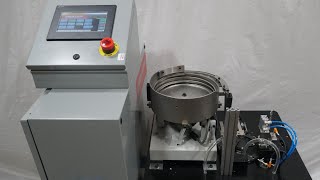

This High-output thread-verification system for M12 external threads in plugs and M10 external threads in machine screws. Parts are fed in through a vibratory bowl feeder, GO verified then sorted into bins. Changeover between parts takes less than 5 minutes.

New-style Automated IND/SCC-MN-2 for brake system components. Supplied by a vibratory feeding system and Equipped with New Vista ‘Safety Indexer’ with quick-change index wheels. Good parts and reject parts go down separate tubes.

This fully automated Rotary Index Station taps and verifies grinder wheel hubs. Parts are fed by gravity through a track then tapped, cleaned, GO checked, NO GO checked, and sorted. It features a New Vista designed AR Tapping Unit

Features
Videos
Resources
Get a Quote

Can be fitted to Tap, Recondition, and Verify threads. Additionally, can accommodate other processes.
Automatically inspects threaded features in parts. Rejects are automatically sorted out.

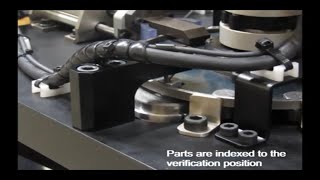

Indexing wheel transfers part from load-in to various inspection positions.
Good parts and rejects are chuted away separately.
Throughputs to 14,400 parts per hour (four parts up).
Checks threaded holes (or external threads) by powering a Thread Gage Member into (or onto) the part. “GO” gaging, “NO GO” gaging, and combination gaging are all possible.
Sensitive high-speed drive causes the spindles to stop in case of missing, short or improperly formed threads. This creates a “reject” signal.
Will check blind holes accurately for thread depth.
Will not jam or stick in undersize (reject) threads. Rejects are separated out without stopping the process.
Does not subject the part (or the spindle) to high force or torque levels…even with a reject.
Multiple Spindle Stations are available for multiple parts or multiple centers work.
Automatic gaging of non-threaded features can be incorporated in.
Supplied tooled and proven out for your application.
