RT Battery Powered Handheld Thread Gaging

NEW VISTA RT HAND-HELD THREAD UNITS

— FOR OFFHAND THREAD VERIFICATION AND THREAD REMEDIATION —

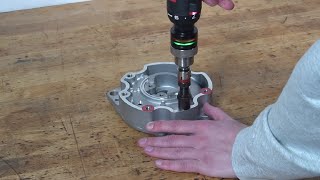

New Vista Model RT Shown equipped with compliant toolholder and quick-change thread tool

RT Kits for use with customer’s existing thread gages are available.

Green depth sensing lights are available for RT Units.

RT Units can be equipped for a variety of thread sizes and depths.

Type FP Toolholders accept standard gages and can be changed out in a matter of seconds.

RT Unit feature configuration with Depth Sensing Lights.

Battery-powered verification (or remediation) of threaded holes (or external threads).
Portable. Two-speed gear drive. Can be used anywhere.
Will process most threads in less than 3 seconds.
Sensitive patented clutch unit allows the thread tool to stop harmlessly in case of hopelessly obstructed threads.
Fast-change snap-in Type FP chuck enables tool changes in 4 seconds.
Tool Adapters will accommodate all the popular tool shanks: taper, straight, Type BH and full-threaded (reversible).
Compliant feature prevents jamming. It will follow the existing thread, not fight it.
Forward (driving-in) torque settings are made with an external knob. Torque in reverse is always at maximum power.
