HTU Electric Powered Handheld Thread Inspection

NEW VISTA HTU HAND-HELD THREAD UNITS

FOR OFFHAND THREAD VERIFICATION AND THREAD REMEDIATION

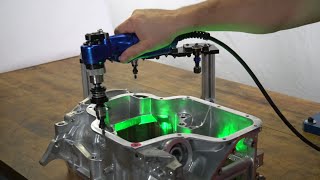

New Vista Model HTU Shown equipped with compliant toolholder and quick-change thread tool.

A Pantograph-mounted HTU in conjunction with Tool Docks.

The HTU will automatically reverse out of the thread at the minimum thread depth.

Battery-powered verification (or remediation) of threaded holes (or external threads).
Portable. Variable speed. Can be used anywhere.
Achieves precise thread depths. It will automatically stop feeding (and a light will come on) when preset depth is achieved. Reverse-out is automatic.
Will process most threads in less than 2 seconds.
Sensitive patented high speed drive causes the thread tool to stop in case of short, obstructed or seriously deformed threads.
Depth-sensing device checks blind holes accurately for thread depth. When using New Vista Quick-change Toolholders, no tuning-in for thread depth is required after changeover.
Forward (driving-in) torque settings are made with an external knob. Torque in reverse is always at maximum setting.
Works with New Vista tool docks and pantographs.
Right– or left–hand operation.
